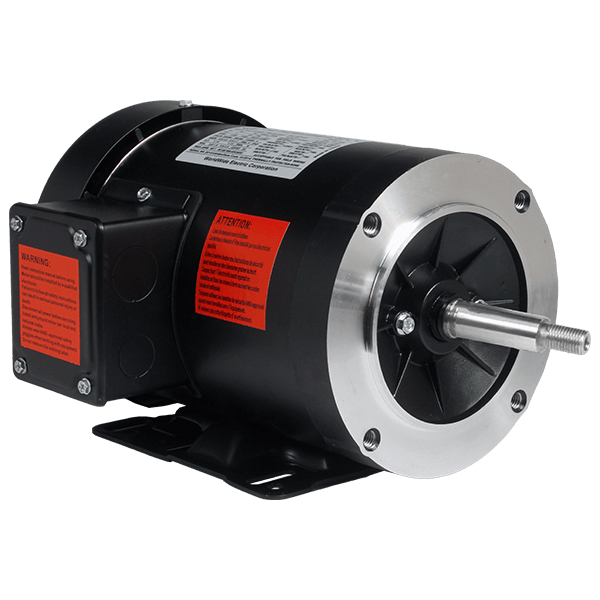

NATJE1.5-36-56JB Worldwide Jet Pump 1.5HP 3600RPM 56J TEFC 208-230/460V 3 Phase

Featuring a high-torque and durable design, WorldWide Electric’s Three-Phase Jet Pump Motors effectively power both industrial and residential pumping solutions such as water wells, pools, and more. Built-in convenience features like a C-Face flange and removable base serve to increase flexibility and help reduce on-hand inventory, and the threaded shaft makes installation with most standard applications simple and efficient.

• 1.5hp
• 3600 RPM
• 208-230/460 Volt
• Totally Enclosed Fan Cooled (TEFC) Enclosure
• IP43 Protection
• 1.15 SF
• Class F Insulation
• Premium Efficiency (1-3 HP)
• C-Face with Removable Base
• 56J - Threaded Shaft
• 56C - Keyed Shaft
• Vacuum Pressure Impregnation (VPI) System
• Anti-Rust Film Applied to Rotor
• Improved Shaft Seal on Drive-End Protects Drive-End Bearing from Moisture and Contaminants
• Inverter rated, 4:1 CT / 10:1 VT
• *Suitable for 50 Hz with 1.0 SF
