HW20V2H2 US Motors 20HP 1800RPM 256T TEFC 200V 3 Phase FH53
Regular price
$3,101.00
Couldn't load pickup availability

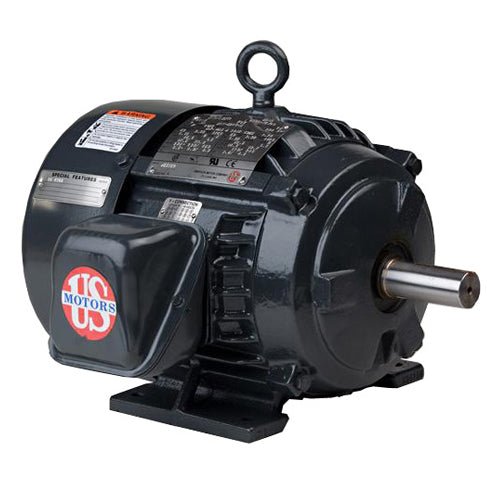

Nidec US Motor HW20V2H2 is a premium electrical motor suitable for cooling towers and other locations with high hunidity. The cast iron body, CORRO-DUTY paint, and stainless steel nameplate help withstand harsh environments.
This 20hp motor features F2 assembly and double drilled feet to accomodate installation.
More features includee:
- Model: FH53
- Inverter Duty with insultation that exceeds NEMA MG-1 Part 31 standard
- Double dip & bakefor winding protection
- Class F insulation / 40 degree ambient
- Sealed bracket-to-frame registers & leads
- Bearing isolators on wet end for vertical mounting positions
- Double sealed, same size bearings on both ends
- 1.15 service factor
