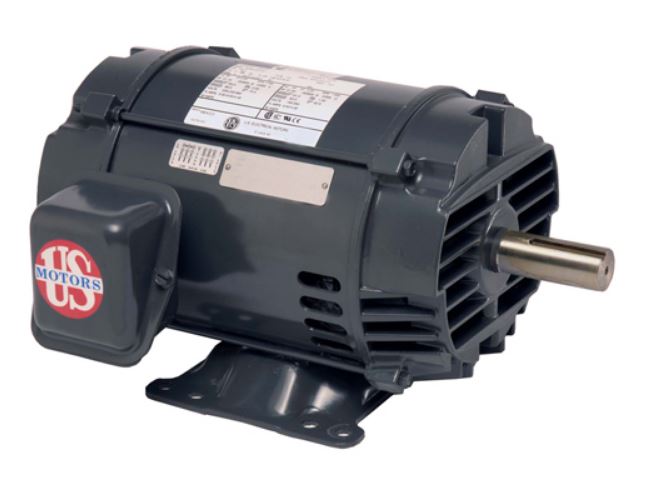

FF30E1AS US Motors 30HP 3600RPM 284TS ODP 208-230/460V 3 Phase Model AC88
Regular price
$4,040.00
Couldn't load pickup availability
Model: AC88
Buy US Motors FF30E1AS by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For fire pump applications per NFPA®† 20 where contaminants are minimal.
This three phase motor features:
- Class F Insulation, Class B Rise At Service Factor
- Rolled Steel Frame 250-320, Cast Iron Frame 360-440
- Aluminum End Shields 250, Cast Iron End Shields 280-440
- Premasked Mylar Nameplate 250-320, Stainless Steel 360-440 Frame
- 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
- Regreasable Bearings 180 Frame & Larger
- Double Shielded Bearings 250-400, Open On 440 Frame
- Lifting Provisions 210 Frame & Larger
- Suitable For Wye-Delta Start 250 Frame & Large
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
- 230/460 & 575 Volt Ratings Comply With NRCan Standards
- 230/460V Ratings Dual Plated For 190/380V 50 Hertz, Next Lower Horsepower
- Oversized Connection Diagram, "CE" Mark On Nameplate
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
