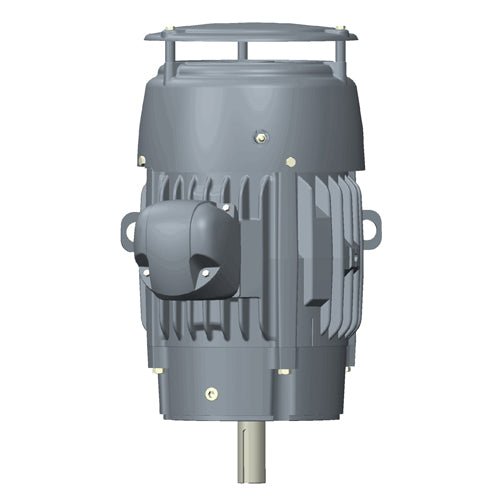

CNT40P1FG US Motors 40HP 3600RPM 324HP TEFC 460V 3 Phase Model DX17
Regular price
$5,879.25
Regular price
$8,775.00
Sale
Sale price
$5,879.25
Couldn't load pickup availability
Model DX17
- For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.
- Duty: Corro
- Ambient (Celsius): 40
- Insulation Class: F, B Rise at Full Load
About This 3 Phase Motor:
- Vertical Solid Shaft Normal Thrust - ""P"" Base Three Phase
- Totally Enclosed Fan Cooled (TEFC), CORRO-DUTY
- NEMA Premium Efficient
- Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- All Cast Iron Construction
- Corrosion Resistant Mill & Chemical Duty Paint
- Stainless Steel Nameplate (with ""CE"" Mark)
- Shaft Slinger On Both Ends For IP54 Protection
- Type HP Shaft And Shaft/Flange Tolerances per NEMA MG1-18.252
- Regreasable Bearings, Lifting Provisions
- 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
- 50 Hz. rated at 190/380V
- 1.15 Service Factor @ 60 Hz.
- Special Balance (< 0.08 In/Sec Vibration)
- Upper Thrust Bearing Open Bearings
- Steel Canopy Cap/Drip Cover
- Cast Iron Inner Bearing Caps
- Condensation Drain With Threaded Brass Breather Plug
- Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard
- Zinc Plated Hardware
- 60/50 Hz rated with no derate on HP; 230/460 volt 60 Hz ratings operate on 190/380 volt 50 Hz, 460V 60 Hz ratings operate on 380V 50 Hz; Full 60 & 50 Hz data on Nameplate
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
