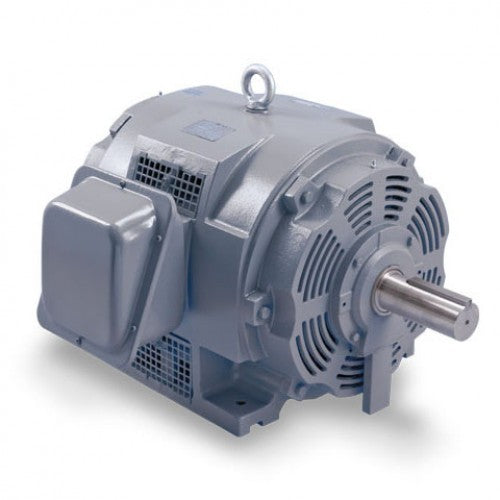

DHP0034 Teco Westinghouse Motor 3HP 1800RPM 182T ODP 208-230/460V 3 Phase

Teco-Westinghouse DHP0034 is built to last and priced to sell! Constructed in durable cast iron, this AC electrical motor provides minimal vibration, wear, and low maintenance. Suited for any commercial or industrial general purpose job with a somewhat clean and dry environment.

Square One Electric is where to buy brand new Teco-Westinghouse motors, complete with a manufacturer’s warranty. More motor features include:

• Three Phase, 60 Hz, 1.15 Service Factor
• Class F Insulation / Class B Temp Rise
• Cast Iron Frame & Housings
• Rolled Steel Junction Box with grounding terminal – Box rotates for easier connection
• Designed for 40˚C Ambient Temperature
• Reversible Rotation
• 1045 Carbon Steel Shaft
• Double Shielded Bearings up to 280T frame
• Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
• Inverter Duty Speed Range: 20:1 VT, 10:1 CT
• 9 Leads
• Motors are U.L. Recognized, CSA Approved and CE Marked

Teco-Westinghouse high-quality machines are used to drive pumps, fans, compressors, rolling mills, grinders, crushers, and a variety of other rugged applications. Their motors and generators are utilized in petroleum, chemical, pulp, paper, mining, marine propulsion, steel, electric utility and other industries throughout the world.
