Y216 Marathon Motor

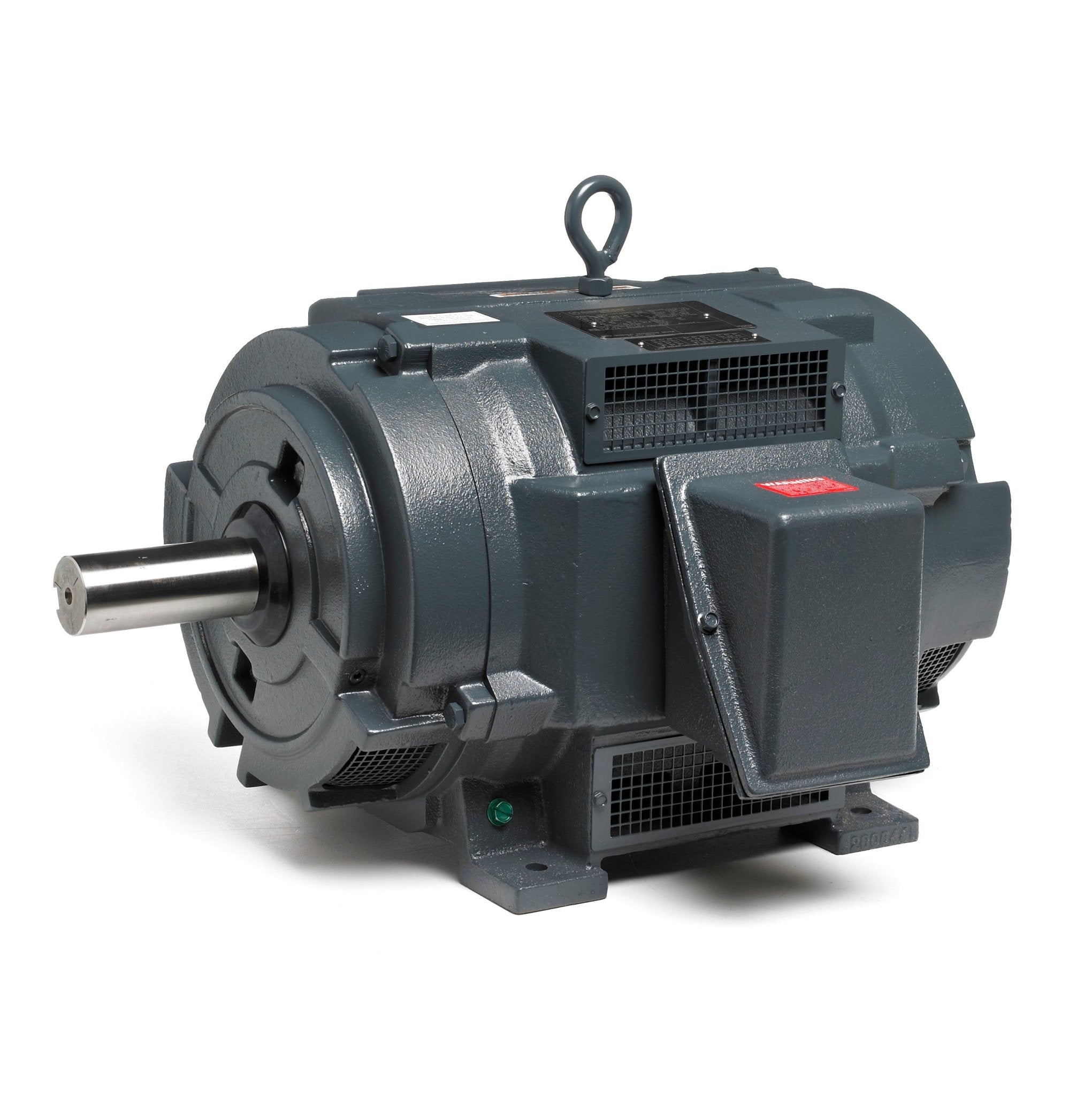

Y216 Marathon Motor 20HP 1200RPM 286T DP 230/460V 3 Phase 286TTDP7689

In stock
SKU: Y216
$3,025.92
$4,728.00 Sale $3,025.92

Product details

  • SKU Y216
  • GTIN 722856043214
  • Brand Marathon
  • Phase 3
  • RPM 901-1200
  • HP / KW 20
  • Application Oil Well
  • Frame 284/6T
  • Enclosure OPEN
  • Voltage 208-230/460V

Share

Description Reviews

Manuf. Model Number: 286TTDP7689

  • NEMA design D for extra high starting and breakdown torques
  • Normally closed thermostats (one per phase, Class F)
  • Fully guarded with screens on all external openings
  • Copper bar rotor on 500 frame
  • Low starting current with 5-8% slip
  • Class F insulation, F2 conduit box location
  • Shaft slinger
  • Special “oil well” duty
  • Ball bearings
