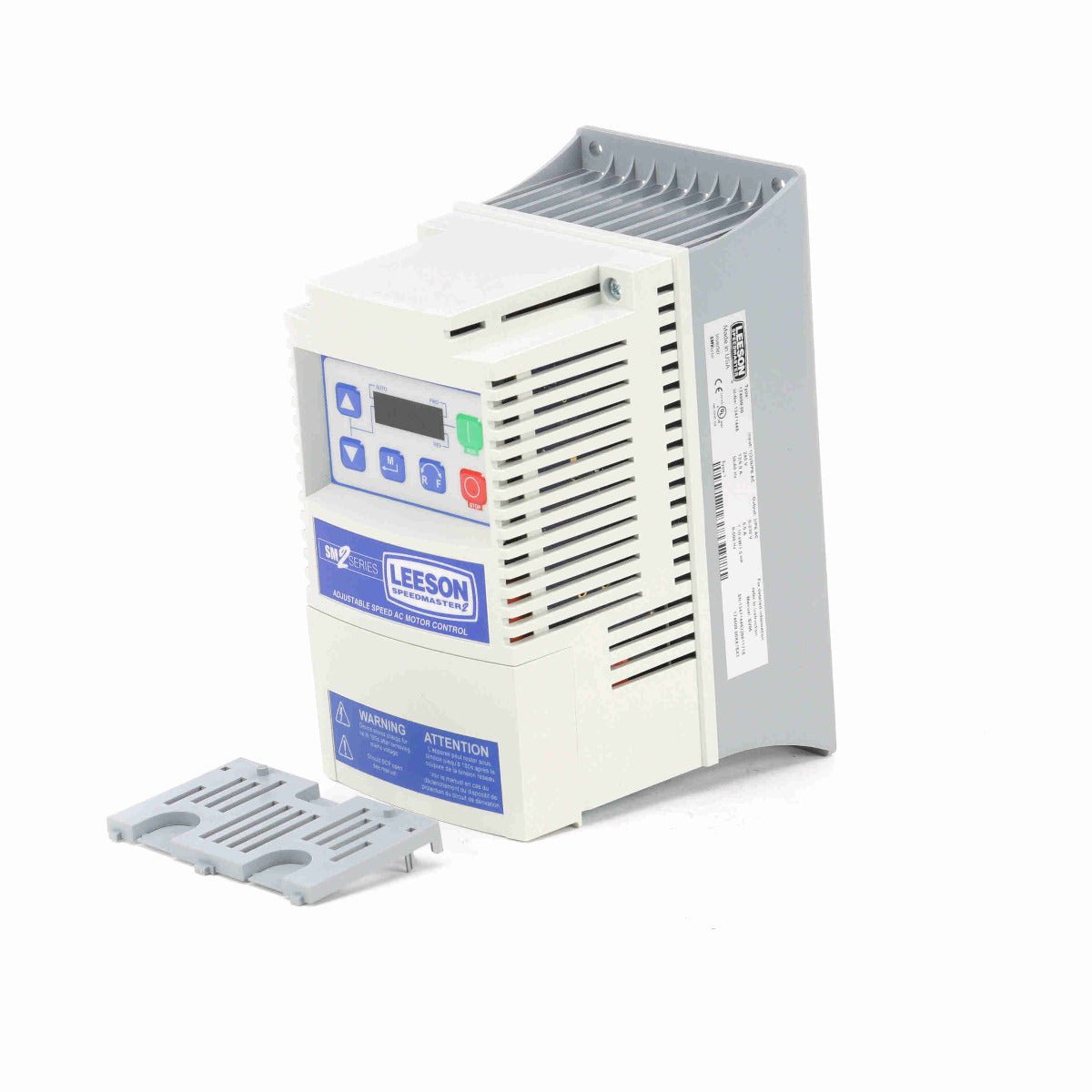

174609.00 Leeson Speedmaster VFD Drive 1.5HP 208/240V 6Amp 1 or 3 Phase IN / 3 Phase OUT

Leeson SM2 174609.00 Vector Drive is fully featured with four modes of operation, 8 preset speeds, auto-tuning, advanced low-speed control, and dynamic speed regulation. Connect this VFD with either single phase or three phase input. Enjoy current, voltage, and other real time monitoring. More Speedmaster drive features include:

• NEMA 1 IP31 Enclosure
• Single or three phase input
• Modes of operation: Open loop flux vector (speed or torque); V/Hz (constant or variable); Enhanced V/Hz with auto-tuning
• Easy to Use Keypad & Display 6-Button Interface: Start; Stop; Forward/reverse; Scroll up; Scroll down; Enter/mode
• Vivid Illumination: 4digit LED display; Easy to read from a distance; Movable decimal point
• Acceleration/Deceleration Profiles: Two Independent accel ramps; Two Independent decel ramps; Linear or S-type; Auxiliary ramp-to-stop
• Output Frequency: 500 Hz Std., 1000 Hz optional
• Selectable Logic Assertion: Positive logic input (PNP current sourcing); Negative logic input (NPN current sinking)
• Loss of follower management
• Speed commands: keypad, jog, floating point control
• Voltage: Scalable 0-10 VDC
• Current: Scalable 4-20 mA, potentiometer,
• High starting torque
• Process control: PID modes: direct or reverse acting,
• PID sleep mode
• Temperature(°C), 0-10 VDC input (user defined), 4-20 mA input (user defined) PID feedback (user defined), analog output (% load, %torque, kW), network speed (baud rate), terminal continuity,keypad status
• Elapsed run time (hours), elapsed power on time (hours)
• This item replaces Leeson 174493.00
