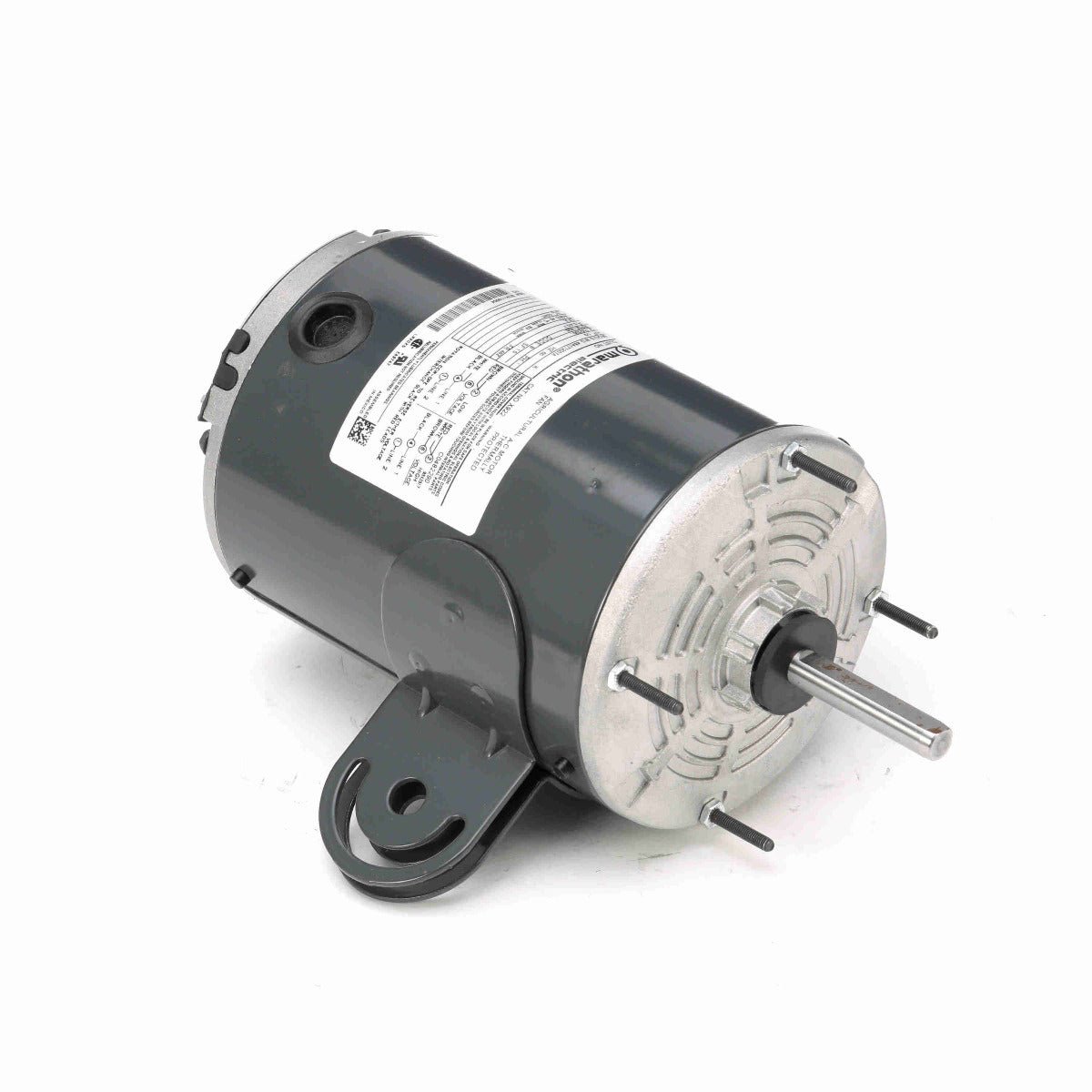

191873.00 Leeson Motor 1/2HP 1625RPM 48Y TEAO 115/230V 1 Phase

Manuf. Model Number: A4P17NZ125A

Replaces Marathon X922

Leeson pedestal fan motor 191873.00 is for Yoke style mount, which is an industry standard type mount. This unit is a drop in replacement for most standard belted fan motors, and it provides extremely quiet running. 191873.00 fan motor also consumes half the power of competitors' brands.

Features:

• Shaft Diameter 0.50
• Permanent split capacitor type
• Ball bearings
• Sturdy steel yoke is welded to the motor frame
• 10-32 mounting studs are extended 1.0” on 5.14” bolt circle
• Motors are UL and CSA recognized for both the U.S. and Canadian markets
• Automatic overload protection
• This item replaces 103719.00

Buy Leeson motors at Square One Electric, a leading Leeson motor distributor. For technical information, visit leeson.com or contact us.
