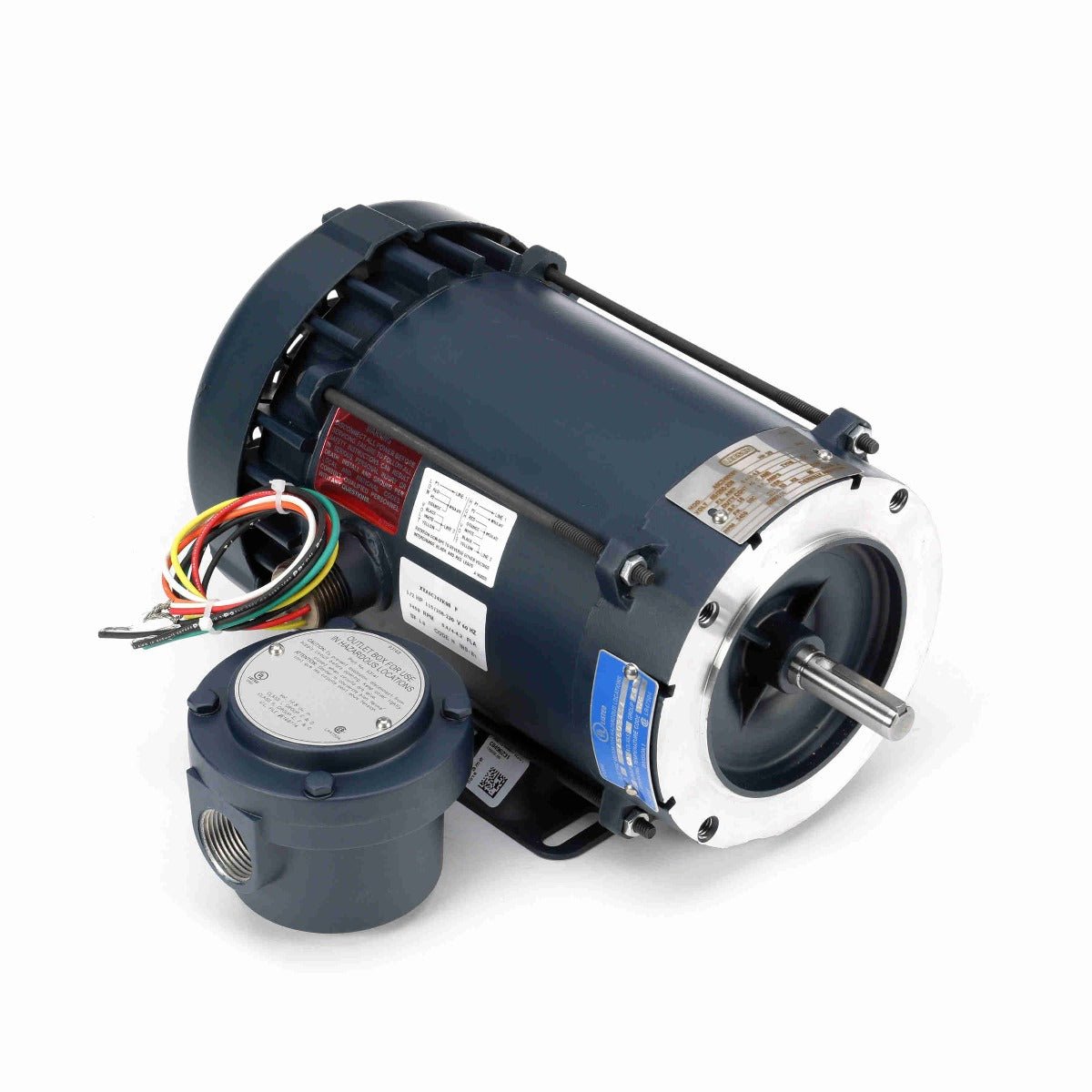

116608.00 Leeson Motor 1/2HP 3450RPM 56C EPFC 115/208-230V 1 Phase
116608.00 Leeson Motor 1/2HP 3450RPM 56C EPFC 115/208-230V 1 Phase
In stock
Regular price
$686.50
Regular price
$1,040.00
Sale
Sale price
$686.50
Couldn't load pickup availability
Product details
- SKU 116608
- GTIN 691720341797
- Brand Leeson
- Phase 1
- RPM 1801-3600
- HP / KW 1/2 (.5)
- Application Explosion Proof
- Frame 56C
- Enclosure TOTALLY ENCLOSED
- Voltage 115/208-230V
- Flange C-Face Footed
Manuf. Model Number: A6C34XK6B
Leeson 116608.00 is an ideal choice for a single phase explosion proof motor for use in hazardous surroundings that need an explosion proof motor for areas that contain combustible gases, vapors and or dust that are present or could be present. This 1/2hp Leeson Motor gives you piece of mind for your money. This motor has many features including double shielded ball bearings and automatic overload protection. More great features include:
-
Meets all UL and CSA safety requirements
-
Includes explosion proof conduit box
-
Rolled steel construction
-
1 year warranty
-
Made in the USA
Specifications:
-
Voltage: 115/230
-
Amps: 2.9
-
Service Factor: 1.00
-
"C" Dimensions: 13.44
Engineering Data | |||||
Volts | 115 | Volts | 208-230 | Volts | |
F.L. Amps | 8.4 | F.L. Amps | 4-4.2 | F.L. Amps | |
S. F Amps | S. F Amps | S. F Amps | |||
RPM | 3600 | Hertz | 60 | ||
HP | 1/2 | Duty | CONTINUOUS | TYPE | CX |
KW | .37 | ||||
Frame | 56C | Serv. Factor | 1.0 | Phase | 1 |
Max Amb | 40 | Design | N | Code | N |
Insul Class | B | Protection | AUTOMATIC | Therm.Prot. | CEJ66CV |
Eff 100% | 59.5 | Eff 75% | PF | 70 | |
UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
CC Number | EXEMPT | CE | No | Bearing PE | 6203 |
Load Type | Inverter Type | Speed Range | NONE | ||
Motor Wt. | 27.85 LB | Enclosure | EPFC | Lubrication | POLYREX EM |
Nameplate | Mounting | RIGID | Rotation | SELECTIVE CCW | |
Assembly | A-S90887 | Shaft Dia. | 5/8 IN | Ext. Diag. | A-102005-109LE |
Cust Part No | Outline | B-104191LE-631 | Ext. Diag2 | ||
Packaging | B | Winding | ZC280 | ||
Carton Label | Leeson Exp Proof | GROUP: | 3 | ||
Iris | Paint | BLUE - LEESON (ENAMEL) | Test Card |
