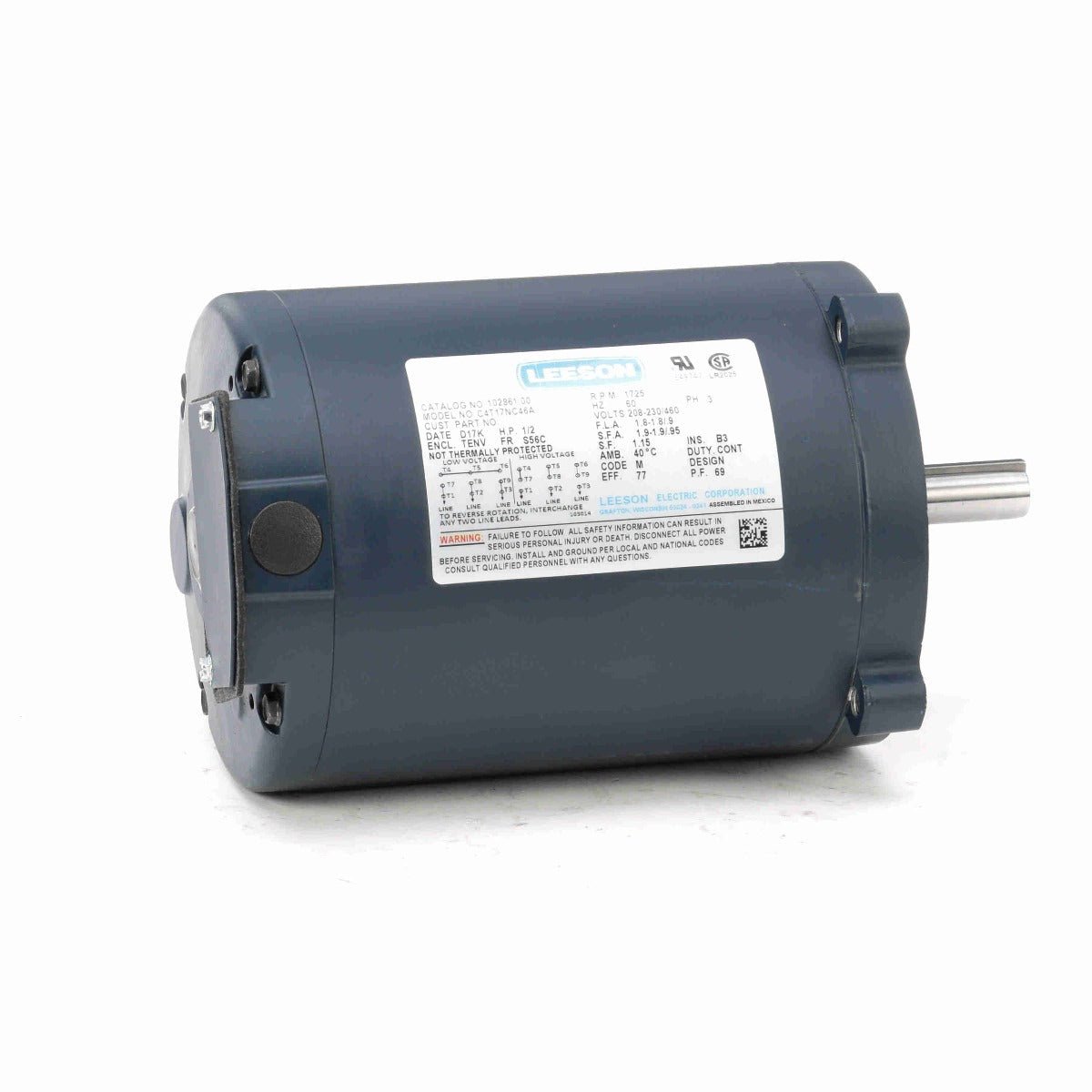

102861.00 Leeson Motor 1/2HP 1725RPM 56C TENV 208-230/460V 3Phase
Regular price
$378.25
Regular price
$573.00
Sale
Sale price
$378.25
Couldn't load pickup availability
Leeson Model No. C4T17NC46
Leeson Motor 102861.00 three phase general purpose electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. Leeson totally enclosed electric motors are well made with a rolled steel body and quality ball bearings that last. More features include:
- Meets or exceeds NEMA motor energy regulations
- Class B insulation
- UL Recognized Component Listing and CSA approval
- 1.15 Service Factor
- 1 year factory warranty
Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data | |||||
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 1.8-1.8 | F.L. Amps | .9 | F.L. Amps | |
| S. F Amps | 1.9-1.9 | S. F Amps | .95 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 1/2 | Duty | CONTINUOUS | TYPE | TN |
| KW | 0.37 | ||||
| Frame | S56C | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | NO DESIGN CODE | Code | M |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 77 | Eff 75% | PF | 69 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | CE | No | Bearing PE | 6203 | |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 20 LB | Enclosure | TENV | Lubrication | VERIFY |
| Nameplate | A-92005-4 | Mounting | ROUND | Rotation | REV |
| Assembly | LO102861 | Shaft Dia. | 5/8 IN | Ext. Diag. | 005010.01 |
| Cust Part No | Outline | 031654-600 | Ext. Diag2 | ||
| Packaging | B | Winding | TE48453 | ||
| Carton Label | Leeson Gen Purpose | GROUP: | 3 | ||
| Iris | Paint | BLUE - LEESON (ENAMEL) | Test Card |
||
