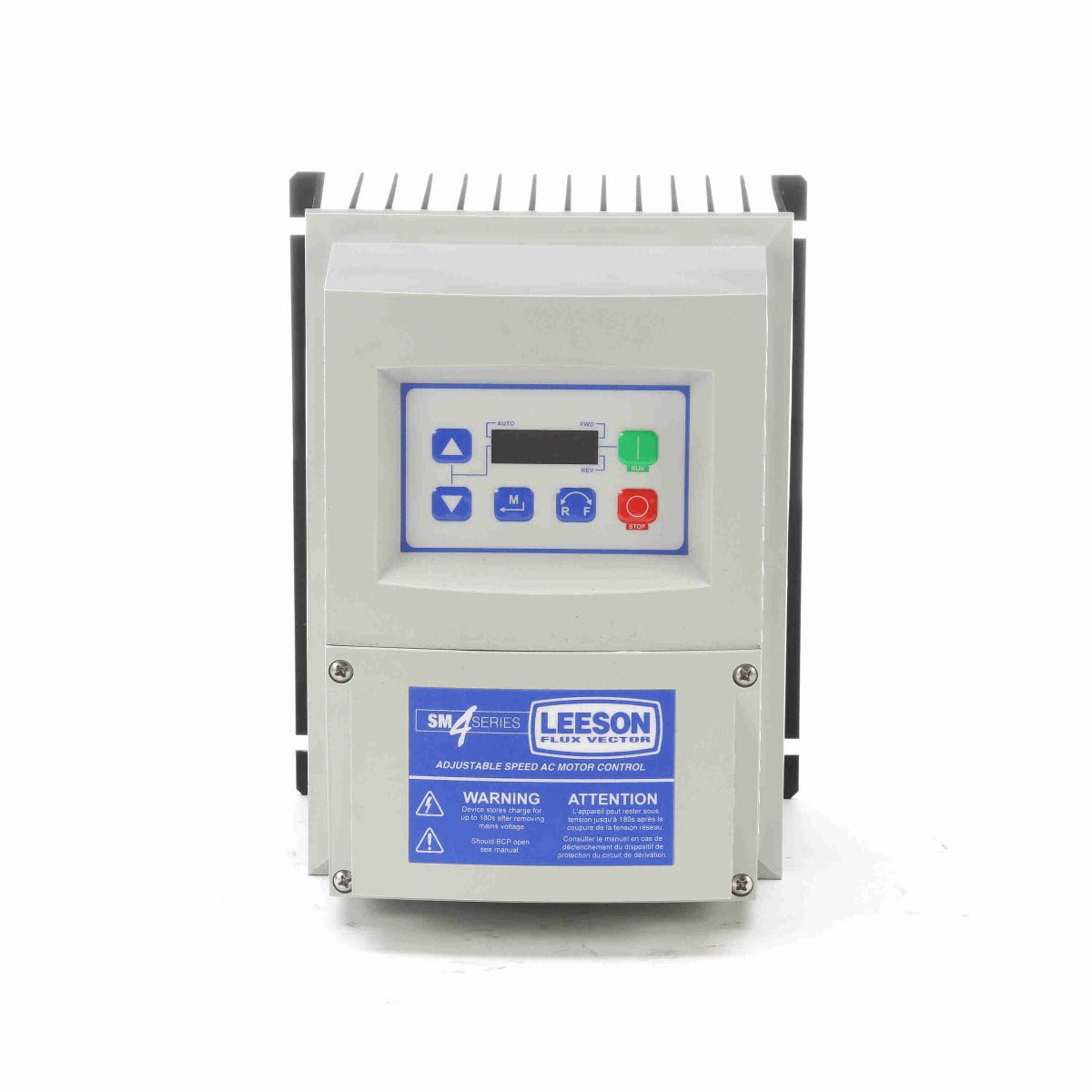

176146.00 Leeson AC VFD Drive 5HP 400-480V 15.2Amp 3 Phase

Leeson sub-micro variable frequency drives are great solutions for your motor speed control needs. Built for single or three phase input and three phase output, this small AC Drive features 18 isolated I/O terminals; RS485 Modbus communication; and seven preset speeds.

More features for the 176146 Leeson VFD include:

• IP20 Enclosure with finger safe terminals
• Sub-Micro AC Inverter
• 18 isolated I/O terminals plus
• RS485 Modbus serial communication
• Removable electronic programming module
• Input line voltage calibration – optimizes over and under voltage trip levels
• Current limit to 180% with frequency foldback
• Adjustable carrier frequency (4 to 10 kHz)
• Adjustable V/Hz
• Output frequency to 240 Hz
• Seven preset speeds
• Automatic restart after fault
• Control via drive face, terminal strip, or (optional) remote keypad
• Coast or ramp to stop
• Independent accel and decel adjustment
• Forward only or forward and reverse direction
• Adjustable DC injection braking
• Speed reference: Keypad, 0-10 VDC, or 4-20mA
• Speed reference calibration
• Speed and load indicating output signal selection: 1-10 VDC or 4-20mA
• Output signal calibration
• Fixed boost for high starting torque
• Accel boost for high torque accelerating at any speed
• Slip compensation
• Three-digit LED display
• Password protection
• Fault history: Stores eight previous trips
• Terminal status indication
• Dynamic braking and remote keypad kits available
