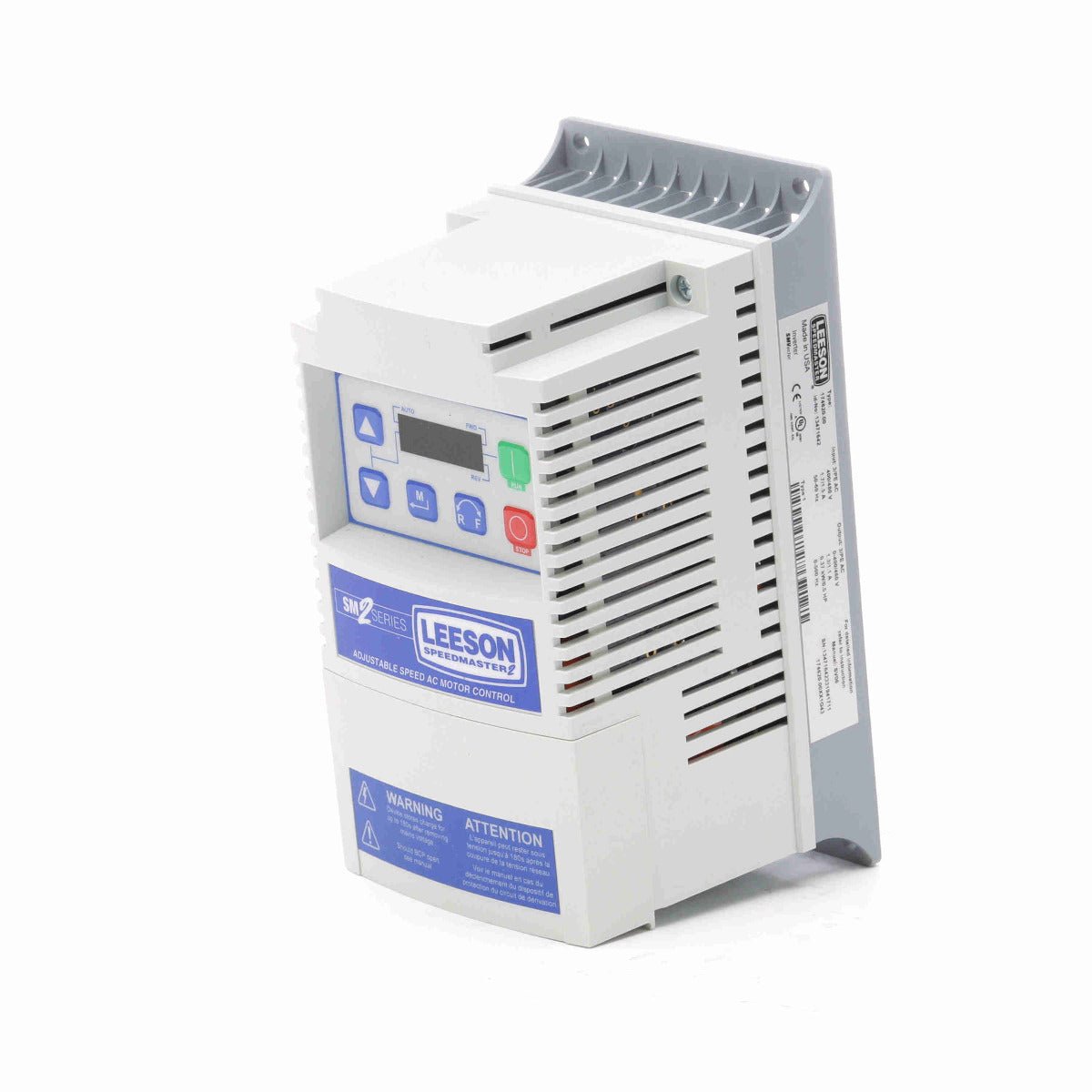

174620.00 Leeson VFD Drive .5HP 400/480V 1.1Amps 3 Phase

These 174620 Leeson SM2 Series Inverters utilize the latest software technology and power conversion circuitry. Designed to use with AC vector motors with open loop flux vector designs. Leeson Speedmaster drives can be used in a wide range of applications, including manufacturing, material handling, and HVAC.

Modes of operation include Open loop flux vector (speed or torque); V/Hz (constant or variable); and Enhanced V/Hz with auto-tuning. Enjoy easy programming with a remote keypad and utilizing TechLink software (available free from www.leeson.com), or through the innovative EPM programmer. More features for the Leeson SM2 include:

• NEMA 1 IP31 Enclosure Protection
• Easy to Use Keypad & Display 6-Button Interface: Start; Stop; Forward/reverse; Scroll up; Scroll down; Enter/mode
• Vivid Illumination: 4digit LED display; Easy to read from a distance; Movable decimal point
• Acceleration/Deceleration Profiles: Two Independent accel ramps; Two Independent decel ramps; Linear or S-type; Auxiliary ramp-to-stop
• Output Frequency: 500 Hz Std., 1000 Hz optional
• Selectable Logic Assertion: Positive logic input (PNP current sourcing); Negative logic input (NPN current sinking)
• Loss of follower management
• Speed commands: keypad, jog, floating point control
• Voltage: Scalable 0-10 VDC
• Current: Scalable 4-20 mA, potentiometer
• 8 Preset speeds
• Process control: PID modes: direct or reverse acting
• PID sleep mode
• Voltage monitoring
• Current monitoring
• Real time monitoring: register fault history, software version drive network ID, DC bus
• Voltage (V), motor voltage (V), output current (%) Motor current (A), motor torque (%), power (kW) Energy consumption (kWh), heatsink
• Temperature(°C), 0-10 VDC input (user defined), 4-20 mA input (user defined) PID feedback (user defined), analog output (% load, %torque, kW), network speed (baud rate), terminal continuity, keypad status
• Elapsed run time (hours), elapsed power on time (hours)
• Standards: UL, cUL, CE, GOST, C-Tick
• This item replaces Leeson 174459.00
