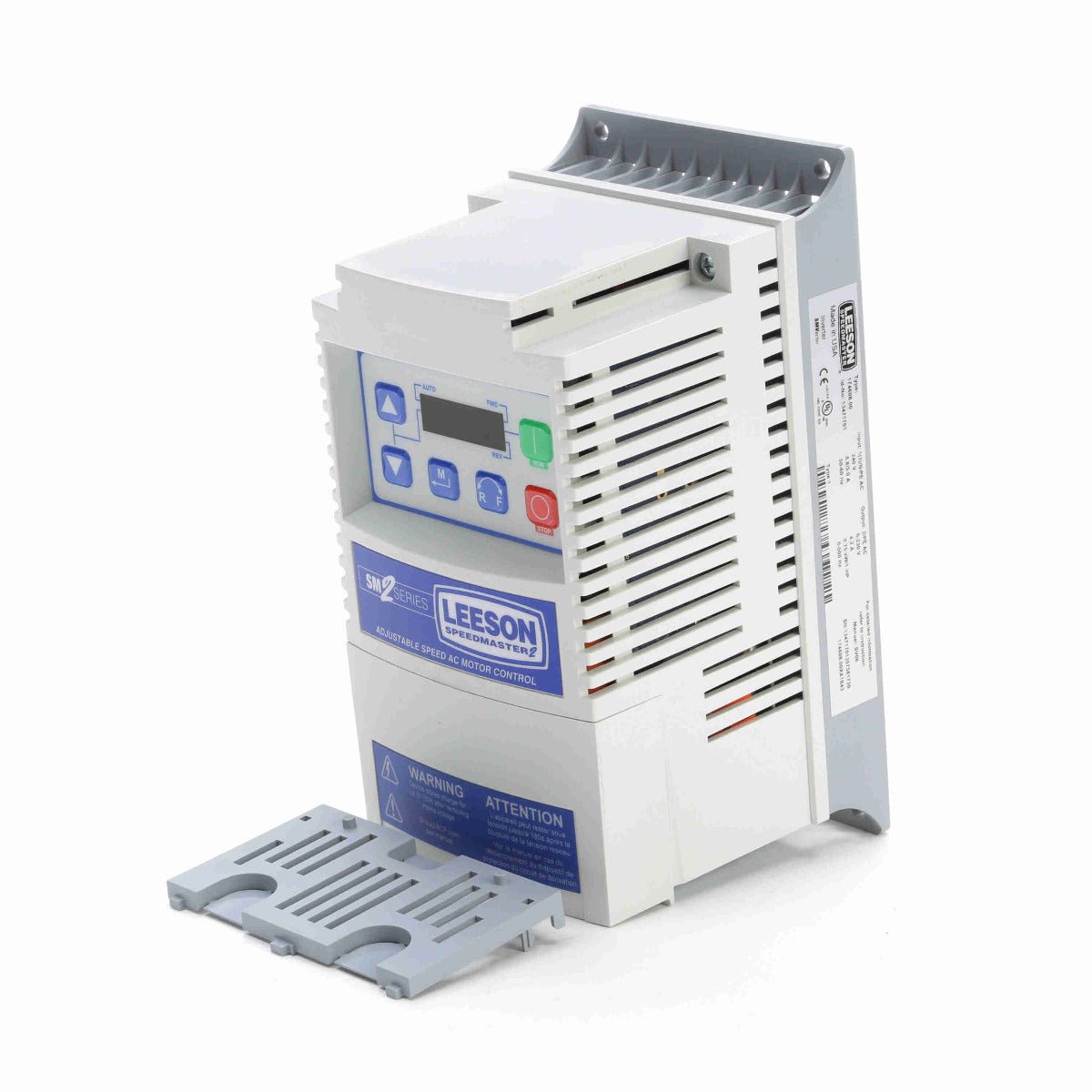

174608.00 Leeson Speedmaster Drive VFD Drive 1HP 208/240V 4.2Amp 1 or 3 Phase IN / 3 Phase OUT

Leeson 174608.00 SM2 Vector Drives utilize the latest software technology and power conversion circuitry. Designed to use with AC vector motors, Leeson Speedmaster VFDs can be used with food processing, material handling, conveyors, and HVAC applications. Equipped with 8 preset speeds and various operation modes, this control is easy to install and operate. Program the Vector control from the front, with a remote keypad, with APCusing TechLink software (available free at leeson.com), or through the innovative EPM programmer. More features include:

• Single or three phase input
• NEMA 1 IP31 Enclosure
• Modes of operation: Open loop flux vector (speed or torque); V/Hz (constant or variable); Enhanced V/Hz with auto-tuning
• Easy to Use Keypad & Display 6-Button Interface: Start; Stop; Forward/reverse; Scroll up; Scroll down; Enter/mode
• Vivid Illumination: 4digit LED display; Easy to read from a distance; Movable decimal point
• Acceleration/Deceleration Profiles: Two Independent accel ramps; Two Independent decel ramps; Linear or S-type; Auxiliary ramp-to-stop
• Output Frequency: 500 Hz Std., 1000 Hz optional
• Selectable Logic Assertion: Positive logic input (PNP current sourcing); Negative logic input (NPN current sinking)
• Loss of follower management
• Speed commands: keypad, jog, floating point control
• Voltage: Scalable 0-10 VDC
• Current: Scalable 4-20 mA, potentiometer,
• 8 Preset speeds
• Process control: PID modes: direct or reverse acting,
• PID sleep mode
• Real time monitoring: 8 register fault history, software version drive network ID, DC bus
• Elapsed run time (hours), elapsed power on time (hours)
• This item replaces 174455.00
