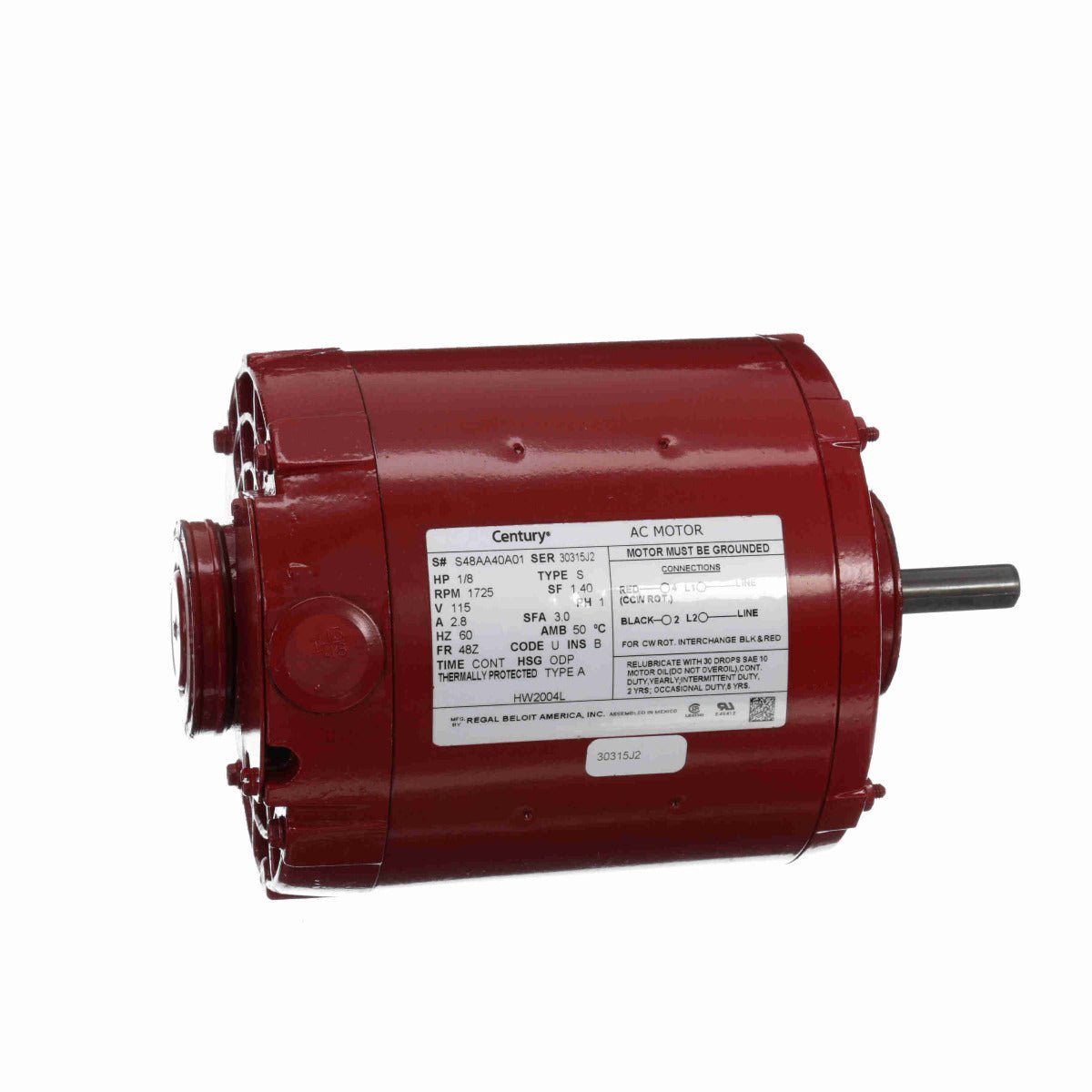

HW2004L Century Motor

HW2004L Century Motor 1/8HP 1725RPM 48Z ODP 115 Volt 1 Phase

In stock
SKU: HW2004L
$137.34
$218.00 Sale $137.34

Product details

  • SKU HW2004L
  • GTIN 786674025241
  • Brand Century - AO Smith
  • Phase 1
  • RPM 1201-1800
  • HP / KW 1/6 (.167) - 1/7 (.143)
  • Application Hot Water Circulator
  • Frame 48Z
  • Enclosure OPEN
  • Voltage 115V

Share

Description Reviews

Century Motors HW2004L Features:

  • Automatic reset thermal protector



PRODUCT SPECIFICATIONS

General Specifications

UPC: 786674025241 Weight: 12.00 LB
Packaged Length: 11 IN Packaged Width: 7.5 IN
Packaged Height: 7 IN



Nameplate Specifications

Output HP: 1/8 Hp Output KW: 0.10 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.8 A Speed: 1725 rpm
Service Factor: 1.4 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 1



Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise
Mounting: Cushion Ring Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 8.97 in
Frame Length: 4.57 in Shaft Diameter: 0.500 in
Shaft Extension: 1.56 in
