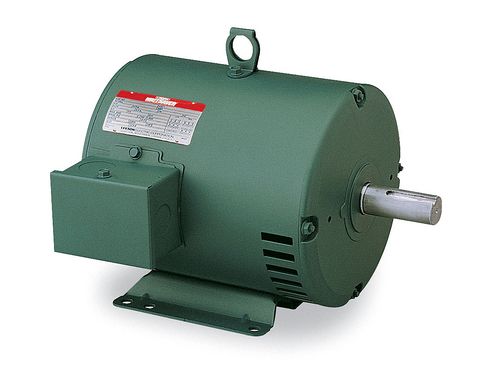

LM32731 Lincoln Motor 3HP 3600RPM 145T DP 230/460V 3 Phase SSD2B3T61
LM32731 Lincoln Motor 3HP 3600RPM 145T DP 230/460V 3 Phase SSD2B3T61
In stock
Regular price
$514.80
Regular price
$858.00
Sale
Sale price
$514.80
Couldn't load pickup availability
Product details
- SKU LM32731
- Brand Lincoln
- Phase 3
- RPM 1801-3600
- HP / KW 3
- Application General Purpose
- Frame 143/5T
- Enclosure OPEN
- Voltage 208-230/460V
Lincoln Model # SSD2B3T61
LM32731 Lincoln dripproof premium energy efficient electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. Lincoln dripproof electric motors are well made with a rolled steel body and quality ball bearings that last. More features include:
- Meets or exceeds NEMA motor energy regulations
- Class B insulation
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Lincoln is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
Engineering Data | |||||
Volts | 230 | Volts | 460 | Volts | 190/380 |
F.L. Amps | 7.2 | F.L. Amps | 3.6 | F.L. Amps | 8.8/4.4 |
S. F Amps | 8.4 | S. F Amps | 4.2 | S. F Amps | 10.6/5.3 |
RPM | 3600 | Hertz | 60/50 | ||
HP | 3 | Duty | CONTINUOUS | TYPE | TDR |
KW | 2.24 | ||||
Frame | 145T | Serv. Factor | 1.25 | Phase | 3 |
Max Amb | 40 | Design | B | Code | K |
Insul Class | F | Protection | NOT | Therm.Prot. | |
Eff 100% | 86.5 | Eff 75% | PF | 88 | |
UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | 6203 |
CC Number | CC003A | CE | Yes | Bearing PE | 6205 |
Load Type | Inverter Type | Speed Range | NONE | ||
Motor Wt. | 42 LB | Enclosure | DP | Lubrication | VERIFY |
Nameplate | 993510 | Mounting | RIGID | Rotation | REV |
Assembly | Shaft Dia. | Ext. Diag. | 005010.20LN | ||
Cust Part No | Outline | 028859LN | Ext. Diag2 | ||
Packaging | B | Winding | T632175 | ||
Carton Label | INDIVIDUAL - LINCOLN | GROUP: | 3 | ||
Iris | Paint | GRAY - LINCOLN | Test Card | 01 |
