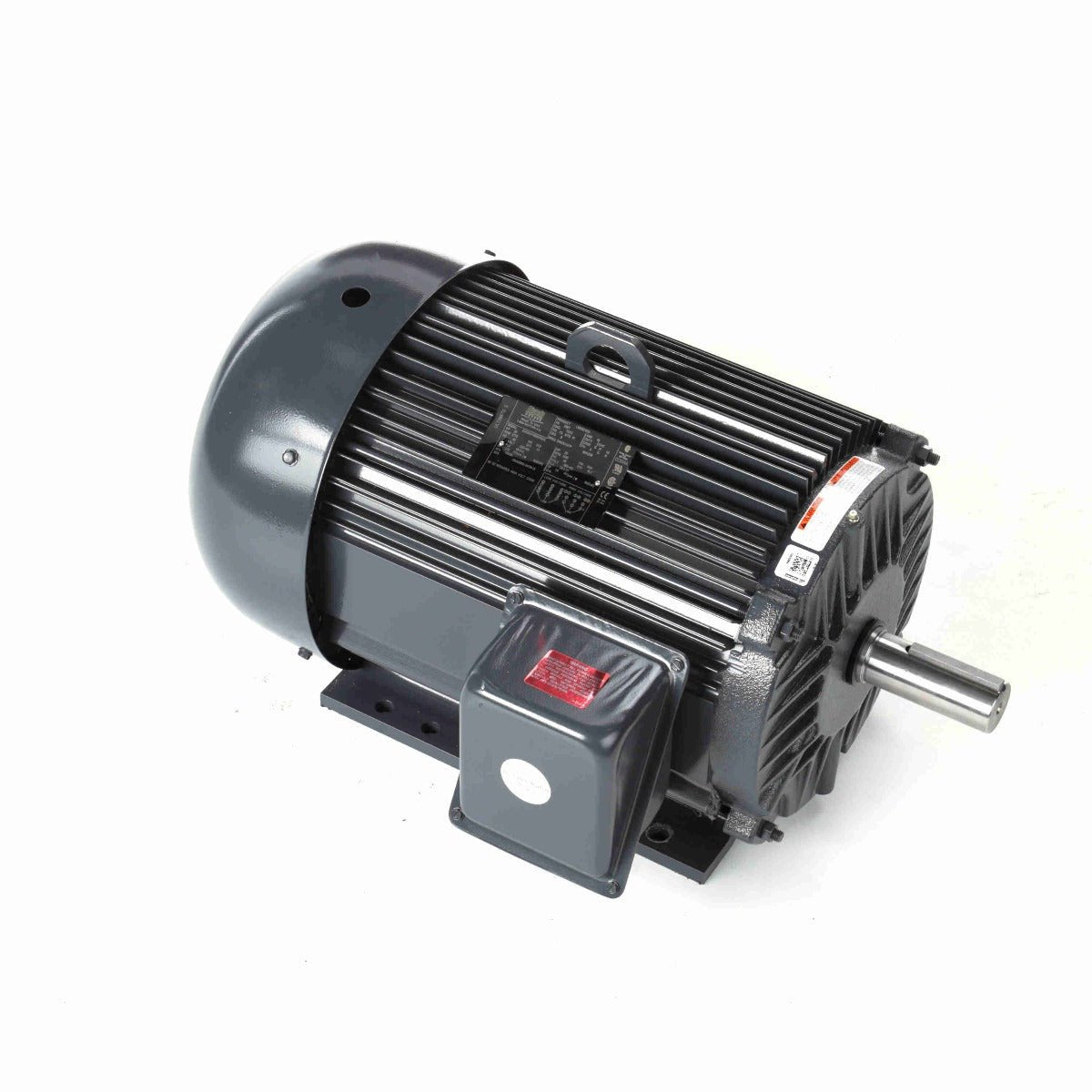

LM15674 Lincoln Motor 20HP 1800RPM 256T TEFC 230/460Volt 3 Phase AAF4B20T61
LM15674 Lincoln Motor 20HP 1800RPM 256T TEFC 230/460Volt 3 Phase AAF4B20T61
In stock
Regular price
$2,259.00
Regular price
$3,765.00
Sale
Sale price
$2,259.00
Couldn't load pickup availability
Product details
- SKU LM15674
- Brand Lincoln
- Phase 3
- RPM 1201-1800
- HP / KW 20
- Application General Purpose
- Frame 254/6T
- Enclosure TOTALLY ENCLOSED
- Voltage 208-230/460V
Lincoln Model # AAF4B20T61
LM15674 Lincoln premium energy efficient electric motors are well made with an aluminum body and quality ball bearings that last. Lincoln three phase general purpose electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. More features include:
- Meets or exceeds NEMA motor energy regulations
- Class F insulation
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Lincoln is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
Engineering Data | |||||
Volts | 230 | Volts | 460 | Volts | 380-415 |
F.L. Amps | 48 | F.L. Amps | 24.1 | F.L. Amps | 28.5-27 |
S. F Amps | 60 | S. F Amps | 30 | S. F Amps | |
RPM | 1800 | Hertz | 60 | ||
HP | 20 | Duty | CONTINUOUS | TYPE | TFL |
KW | 14.9 | ||||
Frame | 256T | Serv. Factor | 1.25 | Phase | 3 |
Max Amb | 40 | Design | B | Code | G |
Insul Class | F | Protection | NOT | Therm.Prot. | |
Eff 100% | 93 | Eff 75% | PF | 84 | |
UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | 208 |
CC Number | CC004A | CE | Yes | Bearing PE | 309 |
Load Type | Inverter Type | Speed Range | 1.5 X BASE SPEED | ||
RPM | 1500 | Hertz | 50 | ||
HP | 20 | Duty | CONTINUOUS | TYPE | TFL |
KW | 14.9 | ||||
Frame | 256T | Serv. Factor | 1.0 | Phase | 3 |
Max Amb | 40 | Design | B | Code | G |
Insul Class | F | Protection | NOT | Therm.Prot. | |
Eff 100% | 91.7 | Eff 75% | PF | 86 | |
UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | 208 |
CC Number | CC004A | CE | Yes | Bearing PE | 309 |
Load Type | Inverter Type | Speed Range | 1.5 X BASE SPEED | ||
Motor Wt. | 295 LB | Enclosure | TEFC | Lubrication | VERIFY |
Nameplate | 92117-A-X-BCDLM-B-A-X | Mounting | RIGID | Rotation | REV |
Assembly | Shaft Dia. | Ext. Diag. | A-EE7358-LN | ||
Cust Part No | Outline | B-SS321100LN-1375 | Ext. Diag2 | ||
Packaging | B | Winding | K2564164 | ||
Carton Label | GROUP: | 1 | |||
Iris | Paint | STANDARD | Test Card |
