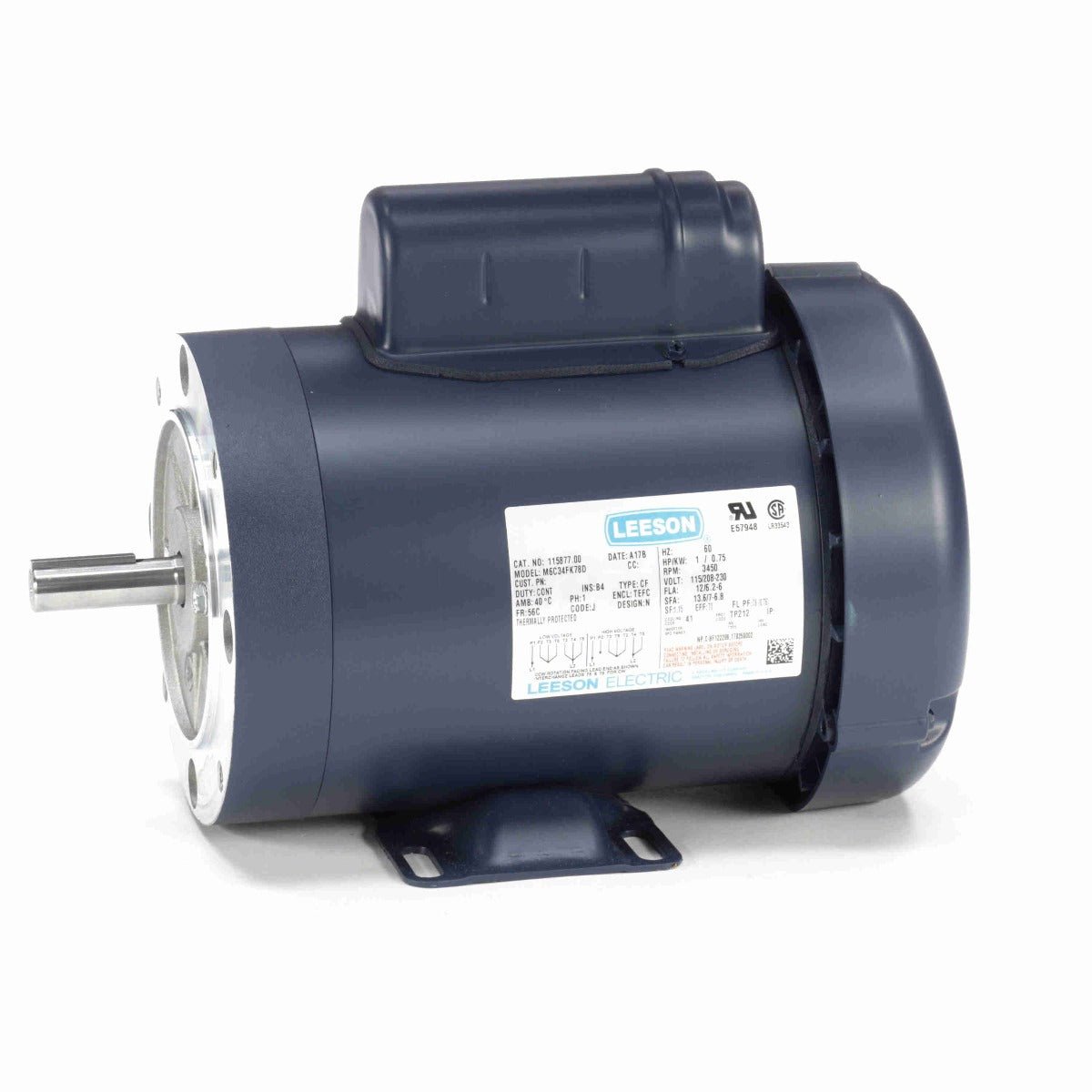

115877.00 Leeson Motor 1HP 3450RPM 56C TEFC 115/208-230Volt 1 Phase
Couldn't load pickup availability
Product details
- SKU 115877.00
- Brand Leeson
- Phase 1
- RPM 1801-3600
- HP / KW 1
- Application Pressure Washer
- Frame 56C
- Enclosure TOTALLY ENCLOSED
- Voltage 115/208-230V
- Flange C-Face Footed
Leeson Model No. M6C34FK78
Leeson C Face Single Phase Pressure Washer Pump motors are reliable for hot or cold pressure washer applications that are designed using a start and run capacitor for low amperages. Leeson pressure washer motors have low vibrations due to a balanced rotor and double shielded ball bearings that have an operating temperature range of -20 degrees F to +350 degrees F. These motors are Totally enclosed (TEFC) which means they can be used more dirty or wet environments (to a point) – excessive water exposure may require a more sealed, washdown unit.
Leeson has multiple nationwide warehouses that are fully stocked with a wide selection of motors, from small fractional to the largest of horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment accordingly. Features:
- Heavy duty varnish windings
- Manual reset overload protection
- High service factor
- Manual overload protection
- "C" Dimension: 11.81"
- 6.0 AMPS
- 1.15 Service Factor
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
Engineering Data | |||||
Volts | 115 | Volts | 208-230 | Volts | |
F.L. Amps | 12 | F.L. Amps | 6.2-6 | F.L. Amps | |
S. F Amps | 13.6 | S. F Amps | 7-6.8 | S. F Amps | |
RPM | 3600 | Hertz | 60 | ||
HP | 1 | Duty | CONTINUOUS | TYPE | CF |
KW | .75 | ||||
Frame | 56C | Serv. Factor | 1.15 | Phase | 1 |
Max Amb | 40 | Design | N | Code | J |
Insul Class | B | Protection | MANUAL | Therm.Prot. | CEJ53CA |
Eff 100% | 70 | Eff 75% | PF | 76 | |
UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
CC Number | EXEMPT | CE | No | Bearing PE | 6203 |
Load Type | Inverter Type | Speed Range | NONE | ||
Motor Wt. | 30 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
Nameplate | 993500 | Mounting | RIGID | Rotation | SELECTIVE CCW |
Assembly | NONE | Shaft Dia. | 5/8 IN | Ext. Diag. | 005003.03 |
Cust Part No | Outline | 028851-650B | Ext. Diag2 | ||
Packaging | B | Winding | C632211 | ||
Carton Label | INDIVIDUAL | GROUP: | 3 | ||
Iris | Paint | BLUE - LEESON (ENAMEL) | Test Card | 03 |
