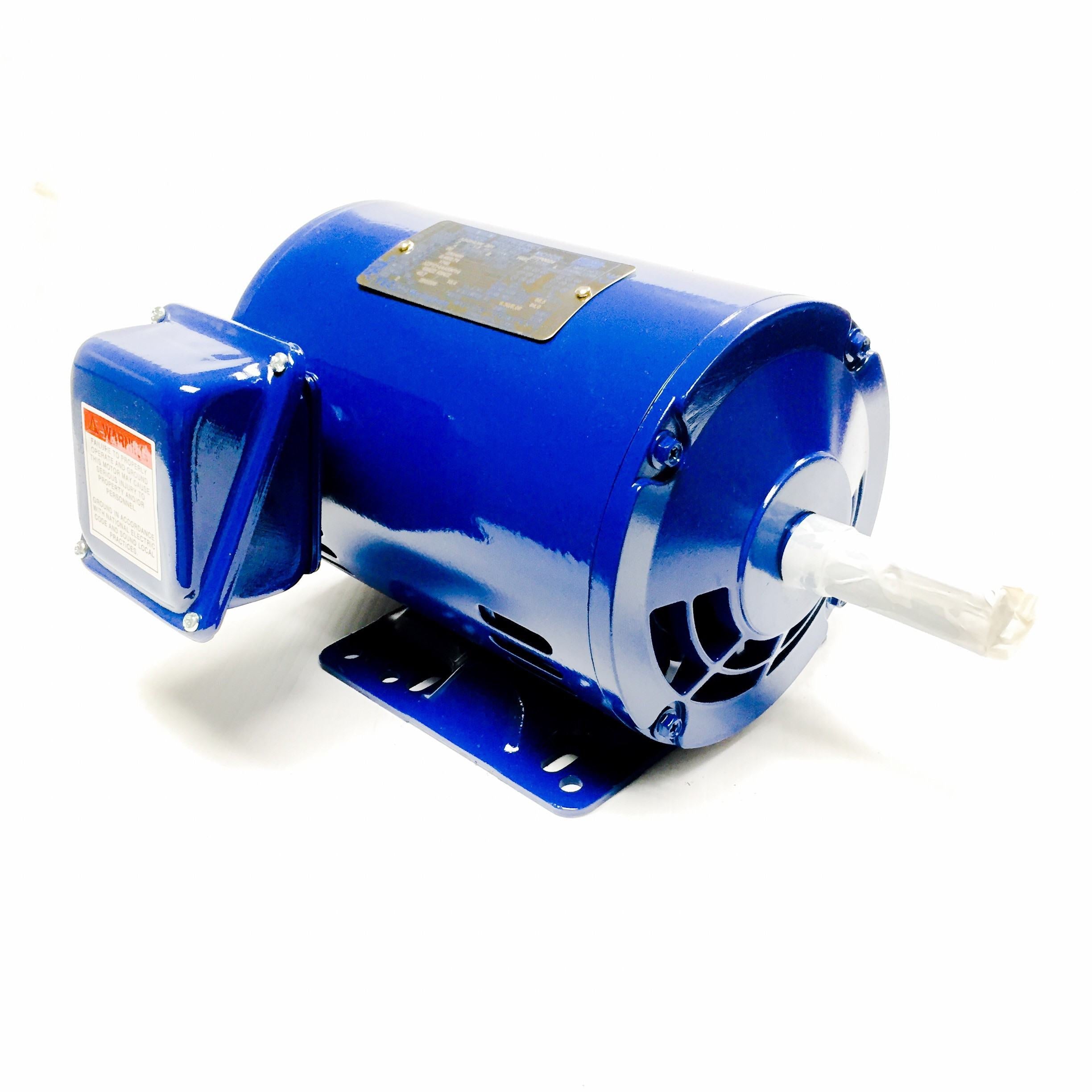

DTP7/52 Teco Westinghouse Motor 7.5HP 3600RPM 184T ODP 208-230/460V 3 Phase

DTP7/52 Teco Westinghouse AC electrical motor is designed for a wide range of commercial and industrial applications. Use on fire and other pumps; HVAC equipment including blowers and fans; and compressors.

The open enclosure is ideal for relatively clean and dry locations; not for use in outside environemtns unless it is protected from the elements. Rotor is dynamic balanced for quiet operation and low vibration.

This 7.5 horsepower motor features include:

• Rolled Steel Frame / Steel Shaft
• Grounding Terminal Inside Main Junction Box
• Rotatable Large Junction Box
• F1 Mount
• 40˚C Ambient
• Reversible Rotation
• Double Shielded Ball Bearings (Non-regreasable)
• Inverter Duty (20:1 Variable Torque / 10:1 Constant Torque)
• 9 Leads
